Chapter 4: Masonry Structures

​

4.1 INTRODUCTION

​

4.1.1 Scope

This chapter of the Code covers the design, construction and quality control of masonry structures.

​

4.1.2 Symbols and Notation

The following units shall be generally implicit in this chapter for the corresponding quantities: $a$ = depth of equivalent rectangular stress block for strength design $A_b$ = cross-sectional area of anchor bolt $A_e$ = effective area of masonry $A_g$ = gross area of wall $A_{mv}$ = net area of masonry section bounded by wall thickness and length of section in the direction of shear force considered $A_p$ = area of tension (pullout) cone of an embedded anchor bolt projected into the surface of masonry $A_s$ = effective cross-sectional area of reinforcement in a flexural member $A_v$ = area of steel required for shear reinforcement perpendicular to the longitudinal reinforcement $A_s'$ = effective cross-sectional area of compression reinforcement in a flexural member $b$ = effective width of rectangular member or width of flange for T and I section $b_t$ = computed tension force on anchor bolt $b_v$ = allowable shear force on anchor bolt $b_w$ = width of web in T and I member $B_t$ = allowable tension force on anchor bolt $B_v$ = computed shear force on anchor bolt $c$ = distance from the neutral axis to extreme fibre $C_d$ = masonry shear strength coefficient $d$ = distance from the compression face of a flexural member to the centroid of longitudinal tensile reinforcement $d_b$ = diameter of the reinforcing bar, diameter of bolt $e$ = eccentricity of $P_u$ $e_{mu}$ = maximum usable compressive strain of masonry $E_m$ = modulus of elasticity of masonry $E_s$ = modulus of elasticity of steel $f_a$ = computed axial compressive stress due to design axial load $f_b$ = computed flexural stress in the extreme fibre due to design bending load only $f_{md}$ = computed compressive stress in masonry due to dead load only $f_r$ = modulus of rupture $f_s$ = computed stress in reinforcement due to design load $f_y$ = tensile yield stress of reinforcement $f_v$ = computed shear stress due to design load $f_m'$ = specified compressive strength of masonry at the age of 28 days $F$ = loads due to weight and pressure of fluids or related moments and forces $F_a$ = allowable average axial compressive stress for centroidally applied axial load only $F_b$ = allowable flexural compressive stress if members were carrying bending load only $F_{br}$ = allowable bearing stress $F_s$ = allowable stress in reinforcement $F_{sc}$ = allowable compressive stress in column reinforcement $F_t$ = allowable flexural tensile stress in masonry $F_v$ = allowable shear stress in masonry $G$ = shear modulus of masonry $h$ = height of wall between points of support $h'$ = effective height of a wall or column $H$ = actual height between lateral supports $H'$ = height of opening $I$ = moment of inertia about the neutral axis of the cross-sectional area $I_g, I_{cr}$ = gross, cracked moment of inertia of the wall cross-section $j$ = ratio or distance between centroid of flexural compressive force and centroid of tensile forces to depth, $d$ $k$ = ratio of depth of the compression zone in flexural member to depth, $d$; stiffening coefficient $\ell$ = length of a wall or segment $\ell_b$ = embedment depth of anchor bolt $\ell_{be}$ = anchor bolt edge distance, the least length measured from the edge of masonry to the surface of the anchor bolt $\ell_d$ = required development length of reinforcement $L$ = actual length of wall $M$ = design moment $M_c$ = moment capacity of the compression steel in a flexural member about the centroid of the tensile force $M_{cr}$ = cracking moment strength of the masonry wall $M_m$ = the moment of the compressive force in the masonry about the centroid of the tensile force in the reinforcement $M_n$ = nominal moment strength of the masonry wall $M_s$ = the moment of the tensile force in the reinforcement about the centroid of the compressive force in the masonry $M_{ser}$ = service moment at the mid-height of the panel, including P-Delta effects $M_u$ = factored moment $n$ = modular ratio = $E_s/E_m$ $P$ = design axial load $P_a$ = allowable centroidal axial load for reinforced masonry columns $P_b$ = nominal balanced design axial strength $P_f$ = load from tributary floor or roof area $P_o$ = nominal axial load strength with bending $P_u$ = factored axial load $P_{uf}$ = factored load from tributary floor or roof loads $P_{uw}$ = factored weight of the wall tributary to the section under consideration $P_w$ = weight of the wall tributary to the section under consideration $r_b$ = ratio of the area of bars cut off to the total area of bars at the section $s$ = spacing of stirrups or bent bars in a direction parallel to that of the main reinforcement $S$ = section modulus $t$ = effective thickness of a wythe, wall or column $u$ = bond stress per unit of surface area of bar $V$ = total design shear force $V_n$ = nominal shear strength $V_m$ = nominal shear strength provided by masonry $V_s$ = nominal shear strength provided by shear reinforcement $\Delta_u$ = horizontal deflection at mid-height under factored load; P-Delta effects shall be included in deflection calculation $\rho$ = steel ratio = $A_s/bd$ $\rho_n$ = ratio of distributed shear reinforcement on a plane perpendicular to the plane of $A_{mv}$ $\Sigma_o$ = sum of the perimeters of all the longitudinal reinforcement $\phi$ = strength reduction factor

​

4.1.3 Definitions

For the purpose of this chapter, the following definitions shall be applicable. BED BLOCK: A block bedded on a wall, column or pier to disperse a concentrated load on a masonry element. BED JOINT: A horizontal mortar joint upon which masonry units are placed. BOND: Arrangement of masonry units in successive courses to tie the masonry together both longitudinally and transversely; the arrangement is usually worked out to ensure that no vertical joint of one course is exactly over the one in the next course above or below it and there is maximum possible amount of lap. BOND BEAM: A horizontal grouted element within masonry in which reinforcement is embedded. BUTTRESS: A pier of masonry built as an integral part of wall and projecting from either or both surfaces, decreasing in cross-sectional area from base to top and conforming to the requirement of Sec 4.3.3(c) (ii). CAVITY WALL: A wall comprising two limbs each built-up as single or multi-wythe units and separated by a 50-115 mm wide cavity. The limbs are tied together by metal ties or bonding units for structural integrity. CELL: A void space having a gross cross-sectional area greater than 1000 mm². COLUMN: An isolated vertical load bearing member the width of which does not exceed three times the thickness. CROSS JOINT: A vertical joint normal to the face of the wall. CROSS-SECTIONAL AREA OF MASONRY UNIT: Net cross-sectional area of masonry unit is the gross cross-sectional area minus the area of cellular space. CURTAIN WALL: A nonload bearing self supporting wall subject to transverse lateral loads, and laterally supported by vertical or horizontal structural member where necessary. DIMENSIONS: Actual dimensions - the measured dimensions of a designated item; such as a designated masonry unit or wall used in the structures. The actual dimension shall not vary from the specified dimension by more than the amount allowed in the appropriate standard mentioned in Sec 2.2.4 of Part 5. Nominal dimensions - specified dimensions plus the thickness of the joint with which the unit is laid. Specified dimensions - the dimensions specified for the manufacture or construction of masonry, masonry units, joints or any other components of a structure. Unless otherwise stated, all calculations shall be made using or based on specified dimensions. FACED WALL: A wall in which facing and backing of two different materials are bonded together to ensure common action under load. GROUT: A mixture of cementitious materials and aggregate to which water is added such that the mixture will flow without segregation of the constituents. GROUTED MASONRY: Grouted hollow-unit masonry - that form of grouted masonry construction in which certain designated cells of hollow units are continuously filled with grout. Grouted multi-wythe masonry - that form of grouted masonry construction in which the space between the wythes is solidly or periodically filled with grout. HOLLOW UNIT: A masonry unit of which net cross-sectional area in any plane parallel to the bearing surface is less than 75 per cent of its gross cross-sectional area measured in the same plane. JAMB: Side of an opening in wall. JOINTS: Bed joints - the mortar joint that is horizontal at the time the masonry units are placed. Collar joint - the vertical, longitudinal, mortar or grouted joints. Head joint - the mortar joint having a vertical transverse plane. LATERAL SUPPORT: A support which enables a masonry element to resist lateral load and/or restrains lateral deflection of a masonry element at the point of support. LIMB: Inner or outer portion of a cavity wall. LOAD BEARING WALL: A wall designed to carry an imposed vertical load in addition to its own weight, together with any lateral load. MASONRY: An assemblage of masonry units properly bonded together with mortar. MASONRY UNIT: Individual units, such as brick, tile, stone or concrete block, which are bonded together with mortar to form a masonry element such as walls, columns, piers, buttress, etc. PANEL WALL: An exterior nonload bearing wall in framed structure, supported at each storey but subject to lateral loads. PARTITION WALL: An interior nonload bearing wall, one storey or part storey in height. PIER: A projection from either or both sides of a wall forming an integral part of the wall and conforming to the requirement of Sec 4.4.3.3.c(ii). PILASTER: A thickened section forming integral part of a wall placed at intervals along the wall, to increase the stiffness of the wall or to carry a vertical concentrated load. Thickness of a pier is the overall thickness including the thickness of the wall or, when bounded into a limb of cavity wall, the thickness obtained by treating that limb as an independent wall. PRISM: An assemblage of masonry units bonded by mortar with or without grout used as a test specimen for determining properties of masonry. REINFORCED MASONRY: The masonry construction, in which reinforcement acting in conjunction with the masonry is used to resist forces and is designed in accordance with Sec 4.6. SHEAR WALL: A load bearing wall designed to carry horizontal forces acting in its own plane with or without vertical imposed loads. SOLID UNIT: A masonry unit whose net cross-sectional area in any plane parallel to the bearing surface is 75 per cent or more of the gross cross-sectional area in the same plane. STACK BOND: A bond in bearing and nonbearing walls, except veneered walls, in which less than 75 per cent of the units in any transverse vertical plane lap the ends of the units below a distance less than one-half the height of the unit, or less than one-fourth the length of the unit. VENEERED WALL: A wall in which the facing is attached to the backing but not so bonded as to result in a common action under load. WALL JOINT: A vertical joint parallel to the face of the wall. WALL TIE: A metal fastener which connects wythes of masonry to each other or to other materials. WYTHE: Portion of a wall which is one masonry unit in thickness.

​

4.2 MATERIALS

​

4.2.1 General

All materials used in masonry construction shall conform to the requirements specified in Part 5 of this Code. If no requirements are specified for a material, quality shall be based on generally accepted good practice, subject to the approval of the building official.

​

4.2.2 Masonry Units

The following types of masonry units which conform to the standards mentioned in Sec 2.2.4 of Part 5 may be used in masonry construction: a) Common building clay bricks b) Burnt clay hollow bricks c) Burnt clay facing bricks d) Hollow concrete blocks Other types of masonry units conforming to Sec 2.2.4 of Part 5 may also be used.

​

4.2.3 Mortar and Grout

Mortar and grout for masonry construction shall conform to the requirements specified in Part 5. Mix proportions and compressive strength of some commonly used mortars are given in Table 6.4.1. Table 6.4.1 Mix Proportion and Strength of Commonly used Mortars Note 1: Sand and cement shall be measured in loose volume and sand shall be well graded with a minimum F.M. of 1.2. Note 2: Lime to a maximum of ¼th part by volume of cement may be used to increase workability.

​

4.3 ALLOWABLE STRESSES

​

4.3.1 General

Stresses in masonry shall not exceed the values given in this section. All allowable stresses for working stress design may be increased one third when considering wind or earthquake forces either acting alone or combined with vertical loads. No increase shall be allowed for vertical loads acting alone.

​

4.3.2 Specified Compressive Strength of Masonry, $f_m'$

The allowable stresses for masonry construction shall be based on the value of $f_m'$ as determined by Sec 4.3.3 below.

​

4.3.3 Compliance with $f_m'$

Compliance with the requirements for the specified compressive strength of masonry, $f_m'$ shall be in accordance with the following:

​

4.3.3.1 Masonry Prism Testing

The compressive strength of masonry based on tests at 28 days in accordance with “Standard Test Method for Compressive Strength of Masonry Prisms”, (ASTM E447) for each set of prisms shall equal or exceed $f_m'$. Verification by masonry prism testing shall meet the following: a) Testing Prior to Construction: A set of five masonry prisms shall be built and tested in accordance with ASTM E447 prior to the start of construction. Materials used for prisms shall be same as used in the project. Prisms shall be constructed under the observation of the engineer or an approved agency and tested by an approved agency. b) Testing During Construction: When full allowable stresses are used in design, a set of three prisms shall be built and tested during construction in accordance with (ASTM E447) for each 500 square metres of wall area, but not less than one set of three masonry prisms for any project. No testing during construction shall be required when 50% of the allowable stresses are used in design.

​

4.3.4 Quality Control

Quality control shall include, but not be limited to assure that: a) Masonry units, reinforcement, cement, lime, aggregate and all other materials meet the requirements of the applicable standard of quality and that they are properly stored and prepared for use. b) Mortar and grout are properly mixed using specified proportions of ingredients. The method of measuring materials for mortar and grout shall be such that proportions of materials are controlled. c) Construction details, procedures and workmanship are in accordance with the plans and specification. d) Placement, splices and bar diameters are in accordance with the provisions of this chapter and the plans and specifications.

​

4.3.5 Allowable Stresses in Masonry

When the quality control provisions specified in Sec 4.3.4 above do not include requirements for special inspection, the allowable design stresses in this section shall be reduced by 50 per cent. a) Compressive Stress, Axial i) Unreinforced masonry walls, columns and reinforced masonry wall $$F_a = \frac{f_m'}{5} \left[ 1 - \left( \frac{h'}{42t} \right)^3 \right] \tag{4.3.1}$$ ii) Reinforced masonry columns $$F_a = \left( \frac{f_m'}{5} + \frac{A_s}{1.5 A_e} F_{sc} \right) \left[ 1 - \left( \frac{h'}{42t} \right)^3 \right] \tag{4.3.2}$$ b) Compressive Stress, Flexural $$F_b = 0.33 f_m' \leq 10 \text{ N/mm}^2 \tag{4.3.3}$$ c) Tensile Stress for Walls, Flexure The allowable tensile stress for walls in flexure of masonry structures without tensile reinforcement using mortar Type M₁ or M₂ shall not exceed the values specified in Tables 6.4.2 and 6.4.3. For Type M₃ and M₄ mortar, the value shall be reduced by 25 per cent. No tension is allowed across head joints in stack bond masonry. Values for tension normal to head joints are for running bond. These values shall not be used for horizontal flexural members such as beams, girders or lintels. Table 6.4.2 Flexural Tension, $F_t$ Table 6.4.3 Tension Normal to Head Joints, $F_t$ d) Reinforcing Bond Stress, $u$ e) Shear Stress for Flexural Members, $F_v$ i) When no shear reinforcement is used $$F_v = 0.083 \sqrt{f_m'} \leq 0.25 \text{ N/mm}^2 \tag{4.3.4}$$ ii) When shear reinforcement is designed to take entire shear force $$F_v = 0.25 \sqrt{f_m'} \leq 0.75 \text{ N/mm}^2 \tag{4.3.5}$$ f) Shear Stress for Shear Walls, $F_v$ i) Unreinforced masonry For clay units: $$F_v = 0.025 \sqrt{f_m'} \leq 0.40 \text{ N/mm}^2 \tag{4.3.6}$$ For concrete units: ii) The allowable shear stress for reinforced masonry shear walls shall be according to Table 6.4.4.

​

4.3.6 Allowable Stresses in Reinforcement

a) Tensile Stress i) Deformed bars, $$F_s = 0.5 f_y \leq 165 \text{ N/mm}^2 \tag{4.3.7}$$ ii) Ties, anchors and plain bars, $$F_s = 0.4 f_y \leq 135 \text{ N/mm}^2 \tag{4.3.8}$$ Table 6.4.4 Allowable Shear Stress for Reinforced Masonry Shear Walls, $F_v$ b) Compressive Stress i) Deformed bars in columns and shear walls, $$F_{sc} = 0.4 f_y \leq 165 \text{ N/mm}^2 \tag{4.3.9}$$ ii) Deformed bars in flexural members $$F_{sc} = 0.5 f_y \leq 165 \text{ N/mm}^2 \tag{4.3.10}$$

​

4.3.7 Combined Compressive Stress

Members subject to combined axial and flexural stresses shall be designed in accordance with accepted principles of mechanics or in accordance with the following formula: $$\frac{f_a}{F_a} + \frac{f_b}{F_b} \leq 1 \tag{4.3.11}$$

​

4.3.8 Modulus of Elasticity

The modulus of elasticity of masonry shall be determined by the secant method. The slope of the line connecting the points 0.05 $f_m'$ and 0.33 $f_m'$ on the stress-strain curve shall be taken as the modulus of elasticity of masonry. If required, actual values shall be established by tests. These values are not to be reduced by 50 per cent as specified in Sec 4.3.5(a). a) Modulus of Elasticity for Masonry $$E_m = 750 f_m' \leq 15{,}000 \text{ N/mm}^2 \tag{4.3.12}$$ b) Modulus of Elasticity for Steel $$E_s = 200{,}000 \text{ N/mm}^2 \tag{4.3.13}$$ c) Shear Modulus of Masonry $$G = 0.4 E_m \tag{4.3.14}$$

​

4.3.9 Shear and Tension on Embedded Anchor Bolts

​

4.3.9.1

Allowable loads and placement requirements for anchor bolts shall be in accordance with the following: i) Bent bar anchor bolts shall have a hook with a 90 degree bend with an inside diameter of $3d_b$ plus an extension of $1.5d_b$ at the free end. ii) Headed anchor bolts shall have a standard bolt head. iii) Plate anchor bolts shall have a plate welded to the shank to provide anchorage equivalent to headed anchor bolts.

​

4.3.9.2

The effective embedment length, $\ell_b$ for bent bar anchors shall be the length of embedment measured perpendicular from the surface of the masonry to the bearing surface of the bent end minus one anchor bolt diameter. For plate or headed anchor bolts $\ell_b$ shall be the length of embedment measured perpendicular from the surface of the masonry to the bearing surface of the plate or head of the anchorage. All bolts shall be grouted in place with at least 25 mm of grout between the bolt and the masonry except that 6 mm diameter bolts may be placed in bed joints which are at least twice as thick as the diameter of the bolt.

​

4.3.9.3 Allowable Shear Force

Allowable loads in shear shall be according to Table 6.4.5 or lesser of the value obtained from the following formulae: $$B_v = 1070\left(f_m' A_b\right)^{1/4} \tag{4.3.15}$$ $$B_v = 0.12 A_b f_y \tag{4.3.16}$$ When the distance $\ell_{be}$ is less than $12 d_b$, the value of $B_v$ in Eq (4.3.15) shall be reduced to zero at a distance $\ell_{be}$ equal to 40 mm. Where adjacent anchors are spaced closer than $8d_b$, the allowable shear of the adjacent anchors determined by Eq (4.3.15) shall be reduced by interpolation to 0.75 times the allowable shear value at a centre to centre spacing of $4 d_b$. Table 6.4.5 Allowable Shear, $B_v$ for Embedded Anchor Bolts for Masonry, kN* Bent Bar Anchor Bolt Diameter, mm shown in header row above. Values are for bolts of at least ASTM A307 quality. Bolts shall be those specified in Sec 4.3.9.1.

​

4.3.9.4 Allowable Tension

Allowable tension shall be the lesser value selected from Table 6.4.6 and Table 6.4.7 or shall be determined from lesser of the values obtained from the following formulae: $$B_t = 0.04 A_p \sqrt{f_m'} \tag{4.3.18}$$ $$B_t = 0.2 A_b f_y \tag{4.3.19}$$ The area $A_p$ shall be the lesser of the area obtained from Eq (4.3.20) and (4.3.21) and where the projected areas of adjacent anchor bolts overlap, $A_p$ of each anchor bolt shall be reduced by 50 per cent of the overlapping area. $$A_p = \pi \ell_b^2 \tag{4.3.20}$$ $$A_p = \pi \ell_{be}^2 \tag{4.3.21}$$ Table 6.4.6 Allowable Tension, $B_t$ for Embedded Anchor Bolts for Masonry, kN Embedment Length, $\ell_b$, or Edge Distance, $\ell_{be}$, mm shown in header row above. Note 1: The allowable tension values are based on compressive strength of masonry assemblages. Where yield strength of anchor bolt steel governs, the allowable tension is given in Table 6.4.7. Note 2: Values are for bolts of at least ASTM A307 quality. Bolts shall be those specified in Sec 4.3.9.1. Table 6.4.7 Allowable Tension, $B_t$ for Embedded Anchor Bolts for Masonry, kN Note: Values are for bolts of at least ASTM A307 quality. Bolts shall be those specified in Sec 4.3.9.

​

4.3.9.5 Combined Shear and Tension

Anchor bolts subjected to combined shear and tension shall be designed in accordance with the formula given below: $$\frac{b_t}{B_t} + \frac{b_v}{B_v} \leq 1.00 \tag{4.3.22}$$

​

4.3.9.6 Minimum Edge Distance, $\ell_{be}$

The minimum value of $\ell_{be}$ measured from the edge of the masonry parallel to the anchor bolt to the surface of the anchor bolt shall be 40 mm.

​

4.3.9.7 Minimum Embedment Depth, $\ell_b$

The minimum embedment depth $\ell_b$ shall be $4d_b$ but not less than 50 mm.

​

4.3.9.8 Minimum Spacing Between Bolts

The minimum centre to centre spacing between anchors shall be $4d_b$.

​

4.3.10 Load Test

For load test, the member shall be subject to a superimposed load equal to twice the design live load plus one-half of the dead load. This load shall be maintained for a period of 24 hours. If, during the test or upon removal of the load, the member shows evidence of failure, such changes or modifications as are necessary to make the structure adequate for the rated capacity shall be made; or where possible, a lower rating shall be established. A flexural member shall be considered to have passed the test if the maximum deflection at the end of the 24 hour period neither exceeds $0.005 \ell$ nor $0.00025 \ell^2/t$ and the beam and slabs show a recovery of at least 75 per cent of the observed deflection within 24 hours after removal of the load.

​

4.3.11 Reuse of Masonry Units

Masonry units may be reused when clean, unbroken and conforms to the requirements of Part 5. All structural properties of masonry of reclaimed units, especially adhesion bond, shall be determined by approved test. The allowable working stress shall not exceed 50 per cent of that permitted for new masonry units of the same properties.

​

4.4 BASIC DESIGN REQUIREMENTS

​

4.4.1 General

Masonry structures shall be designed according to the provisions of this section. The required design strengths of masonry materials and any special requirements shall be specified in the plan submitted for approval.

​

4.4.2 Design Considerations

​

4.4.2.1

Masonry structures shall be designed based on working stress and linear stress-strain distribution. Requirements for working stress design of unreinforced and reinforced masonry structures are provided in Sec 4.5 and 4.6 respectively. In lieu of the working stress design method, slender walls and shear walls may be designed by the strength design method specified in Sec 4.7. The structure shall be proportioned such that eccentricity of loading on the members is as small as possible. Eccentric loading shall preferably be avoided by providing: i) adequate bearing of floor/roof on the walls ii) adequate stiffness in slabs, and iii) fixity at the supports.

​

4.4.2.2 Effective Height

a) Wall: The effective height of a wall shall be taken as the clear height between the lateral supports at top and bottom in a direction normal to the axis considered. For members not supported at the top normal to the axis considered, the effective height is twice the height of the member above the support. Effective height less than the clear height may be used if justified. b) Column: Effective height of the column shall be taken as actual height for the direction it is laterally supported and twice the actual height for the direction it is not laterally supported at the top normal to the axis considered. c) Opening in Wall: When openings occur in a wall such that masonry between the openings is by definition a column, effective height of masonry between the openings shall be obtained as follows: i) When wall has full restraint at the top, effective height for the direction perpendicular to the plane of wall equals $0.75H$ plus $0.25H'$, where $H$ is the distance between supports and $H'$ is the height of the taller opening; and effective height for the direction parallel to the wall equals $H$. ii) When wall has partial restraint at the top and bottom, effective height for the direction perpendicular to the plane of wall equals $H$ when height of neither opening exceeds $0.5H$ and it is equal to $2H$ when height of any opening exceeds $0.5H$; and effective height for the direction parallel to the plane of the wall equals $2H$.

​

4.4.2.3 Effective Length

Effective length of a wall for different support conditions shall be as given in Table 6.4.8.

​

4.4.2.4 Effective Thickness

The effective thickness of walls and columns for use in the calculation of slenderness ratio, shall be defined as follows: a) Solid Walls: The effective thickness of solid walls, faced walls or grouted walls shall be the specified thickness of the wall. b) Solid Walls with Raked Mortar Joints: The effective thickness of solid walls with raked mortar joints shall be the minimum thickness measured at the joint. c) Cavity Walls: When both limbs of a cavity wall are axially loaded, each limb shall be considered independently and the effective thickness of each limb shall be determined as in (a) or (b) above. If one of the limbs is axially loaded, the effective thickness of the cavity wall shall be taken as the square root of the sum of the squares of the effective thicknesses of the limbs. d) Walls Stiffened by Pilasters: When solid or cavity walls are stiffened by pilasters at intervals, the effective thickness to be used for the calculation of $h'/t$ ratio, shall be determined as follows: i) Solid Walls: For stiffened solid walls the effective thickness shall be the specified thickness multiplied by the stiffening coefficient, $k$, values of which are given below: Stiffening Coefficient, $k$* * Linear interpolation is permitted for obtaining intermediate values of $k$ where, $\ell_p$ = centre to centre spacing of pilasters $t_p$ = thickness of pilaster including the wall $t_w$ = specified thickness of main wall $w_p$ = width of pilaster in the direction of wall ii) Cavity Walls: When one or both limbs of a cavity wall are adequately bonded into pilasters at intervals, the effective thickness of each limb shall be determined separately as in (a), (b) or d(i) above and the effective thickness of the stiffened cavity wall shall be determined in accordance with (c) above. Where slenderness ratio of the wall is based on the effective length, the effective thickness shall be the same as that without pilasters. e) Columns: The effective thickness for rectangular columns in the direction considered is the actual thickness provided in that direction. The effective thickness for nonrectangular columns is the thickness of a square column with the same moment of inertia about its axis as that about the axis considered in the actual column. Table 6.4.8 Effective Length of Walls

​

4.4.2.5 Slenderness Ratio

a) Walls: For a wall, slenderness ratio shall be the ratio of effective height to effective thickness or effective length to effective thickness whichever is less. In case of a load bearing wall, slenderness ratio shall not exceed 20. b) Column: For a column, slenderness ratio shall be taken to be the greater of the ratio of effective heights to the respective effective thickness in the two principal directions. Slenderness ratio for a load bearing column shall not exceed 12.

​

4.4.2.6 Effective Area

The effective cross-sectional area shall be based on the minimum bedded area of the hollow units, or the gross area of solid units plus any grouted area. If hollow units are used perpendicular to the direction of stress, the effective area shall be lesser of the minimum bedded area or the minimum cross-sectional area. If bed joints are raked, the effective area shall be correspondingly reduced. Effective areas for cavity walls shall be that of the loaded wythes.

​

4.4.2.7 Flexural Resistance of Cavity Walls

For computing the flexural resistance, lateral loads perpendicular to the plane of the wall shall be distributed to the wythes according to their respective flexural rigidities.

​

4.4.2.8 Effective Width of Intersecting Walls

Where a shear wall is anchored to an intersecting wall or walls, the width of the overhanging flange formed by the intersected walls on either side of the shear wall shall not exceed 6 times the thickness of the intersected wall. Limits of the effective flange may be waived if justified. Only the effective area of the wall parallel to the shear forces may be assumed to carry horizontal shear.

​

4.4.3 Supports

​

4.4.3.1 Vertical Support

Structural members providing vertical support of masonry shall provide a bearing surface on which the initial bed joint shall not be less than 6 mm or more than 25 mm and shall be of noncombustible materials, except where masonry is a nonstructural decorative feature or wearing surface.

​

4.4.3.2 Vertical Deflection

Elements supporting masonry shall be designed so that their vertical deflection do not exceed 1/600 of the clear span under total loads. Lintels shall be supported on each end such that allowable stresses in the supporting masonry are not exceeded. The minimum bearing length shall be 100 mm.

​

4.4.3.3 Lateral Support

a) Lateral support of masonry may be provided by cross walls, columns, piers, counterforts or buttresses when spanning horizontally or by floors, beams or roofs when spanning vertically. b) Lateral supports for a masonry element such as load bearing wall or column shall be provided to i) limit slenderness of a masonry element so as to prevent or reduce possibility of buckling of the member due to vertical loads; and ii) resist horizontal components of forces so as to ensure stability of a structure against overturning. c) From consideration of slenderness (i.e. requirement b(i) above), masonry elements may be considered to be laterally supported if i) in case of a wall, where slenderness ratio is based on effective height, floor/roof slab (or beams and slab) irrespective of the direction of span, bears on the supported wall as well as cross walls, to the extent of at least 100 mm; ii) in case of a wall, when slenderness ratio is based on its effective length, a cross wall/pier/buttress of thickness equal to or more than half the thickness of the supported wall or 125 mm, whichever is more and average length equal to or more than one-fifth of the height of the wall, is built at right angle to the wall and properly bonded; iii) in case of a column, an RC or timber beam/R S joist/roof truss, is supported on the column. In this case, the column will not be considered to be laterally supported in the direction at right angle to it; and iv) in case of a column, an RC beam forming a part of beam and slab construction, is supported on the column, and the slab adequately bears on stiffening walls. This construction will provide lateral support to the column, in the direction of both horizontal axes.

​

4.4.4 Stability

A wall or column subject to vertical and lateral loads may be considered to provide adequate lateral support from consideration of stability, if the construction providing the support is capable of resisting the following forces: i) Simple static reactions at the point of lateral support to all the lateral loads; plus ii) A lateral load equal to 2.5% of the total vertical load that the wall or column is designated to carry at the point of lateral support.

​

4.4.4.1

In case of load bearing buildings up to five storeys, stability requirements may be considered to have been satisfied if the following conditions are met. a) Height to width ratio of building does not exceed 2. b) Cross walls acting as stiffening walls continuous from outer wall to outer wall or outer wall to a load bearing inner wall, and of thickness and spacing as given in Table 6.4.9 are provided. Table 6.4.9 Thickness and Spacing of Stiffening Walls * Storey height and maximum spacing as given are centre to centre dimensions. c) Floors and roof either bear on cross walls or are properly anchored to those walls such that all lateral loads are safely transmitted to those walls and through them to the foundation. d) Cross walls are built jointly with the bearing walls and jointly mortared, or interconnected by toothing.

​

4.4.4.2

In case of walls exceeding 8.0 m in length, safety and adequacy of lateral supports shall always be checked by structural analysis.

​

4.4.4.3

A trussed roofing may not provide lateral support unless special measures are adopted to brace and anchor the roofing. However, in case of residential and similar buildings of conventional design with trussed roofing having cross walls, it may be assumed that stability requirements are met by the cross walls and structural analysis for stability may be dispensed with.

​

4.4.4.4

In case of external walls of basement and plinth, stability requirements of Sec 4.4.4 may be considered to be satisfied if: a) Bricks used in basement and plinth have a minimum crushing strength of 5 N/mm² and mortar used in masonry is of Type M₃ or better, b) Clear height of ceiling in basement does not exceed 2.6 m, c) In the zone of action of soil pressure on basement walls, traffic load excluding any surcharge due to adjoining buildings does not exceed 5 kN/m², d) Minimum thickness of basement walls is in accordance with Table 6.4.10. In case there is surcharge on basement walls from adjoining buildings, thickness of basement walls shall be based on structural analysis.

​

4.4.4.5 Free Standing Wall

Free standing walls, subject to wind pressure or seismic forces shall be designed on the basis of permissible tensile stress in masonry or stability consideration. However in Seismic Zones 1 and 2, free standing walls may be proportioned without making any design calculations with the help of Table 6.4.11 provided the mortar used is of type not leaner than M₃. For parapet wall see Sec 4.4.9.4.

​

4.4.5 Structural Continuity

Intersecting structural elements intended to act as a unit shall be anchored together to resist the design forces. Walls shall be anchored together to all floors, roofs or other elements which provide lateral support for the wall. Where floors or roofs are designed to transmit horizontal forces to walls, the anchorages to the walls shall be designed to resist the horizontal forces. Table 6.4.10 Minimum Thickness of Basement Wall Table 6.4.11 Height to Thickness Ratio of Free Standing Wall Note: Height is to be taken from 150 mm below ground level or top of footing/foundation block, whichever is higher, and up to the top edge of the wall.

​

4.4.5.1 Multi-wythe Walls

All wythes shall be bonded by grout or tied together by corrosion resistant wall ties or joint reinforcement as follows: a) Wall Ties in Cavity Wall Construction: Wall ties shall be of sufficient length to engage all wythes. The portion of the wall ties within the wythe shall be completely embedded in mortar or grout. The ends of the wall ties shall be bent to 90 degree angles with an extension not less than 50 mm long. Wall ties not completely embedded in mortar or grout between wythes shall be a single piece with each end engaged in each wythe. There shall be at least one 6 mm diameter wall tie for each 0.45 m² of wall area. For cavity walls in which the width of the cavity is greater than 75 mm, but not more than 115 mm, at least one 6 mm diameter wall tie for each 0.3 m² of wall area shall be provided. Ties in alternate courses shall be staggered. The vertical distance between ties shall not exceed 600 mm. The horizontal distance between ties shall not exceed 900 mm. Additional ties spaced not more than 900 mm apart shall be provided around and within 300 mm of the opening. Wall ties of different size and spacing may be used if they provide equivalent strength between wythes. b) Wall Ties for Grouted Multi-wythe Construction: The two wythes shall be bonded together with at least 6 mm diameter steel wall ties for each 0.20 m² of area. Wall ties of different size and spacing may be used if they provide equivalent strength between wythes. c) Joint Reinforcement: Prefabricated joint reinforcement for masonry walls shall have a minimum of one cross wire of at least 3 mm diameter steel for each 0.2 m² of wall area. The vertical spacing of the joint reinforcement shall not exceed 400 mm. The longitudinal wires shall be thoroughly embedded in the bed joint mortar. The joint reinforcement shall engage all wythes. Where the space between tied wythes is filled with grout or mortar, the allowable stresses and other provisions for masonry bonded walls shall apply. Where the space is not filled, tied walls shall conform to the allowable stress, lateral support, thickness (excluding cavity), height and tie requirements of cavity walls.

​

4.4.6 Joint Reinforcement and Protection of Ties

The minimum mortar cover between ties or joint reinforcement and any exposed face shall be 15 mm. The thickness of grout or mortar between masonry units and joint reinforcement shall not be less than 6 mm, except that smaller diameter reinforcement or bolts may be placed in bed joints which are at least twice as thick as the diameter of the reinforcement.

​

4.4.7 Pipes and Conduits

Pipe or conduit shall not be embedded in any masonry so as to reduce the capacity to less than that necessary for required stability or required fire protection, except the following: a) Rigid electrical conduit may be embedded in structural masonry when their location has been detailed on the approved plan. b) Any pipe or conduit may pass vertically or horizontally through any masonry by means of a sleeve at least large enough to pass any hub or coupling on the pipeline. Such sleeves shall not be placed closer than three diameters, centre to centre, nor shall they unduly impair the strength of construction. c) Placement of pipes or conduits in unfilled cores of hollow unit masonry shall not be considered as embedment.

​

4.4.8 Loads and Load Combination

​

4.4.8.1 Design Loads

All design loads and other forces to be taken for the design of masonry structures shall conform to Chapter 2, Loads.

​

4.4.8.2 Load Dispersion

The angle of dispersion of vertical load on walls shall be taken as not more than 30° from the vertical.

​

4.4.8.3 Distribution of Concentrated Vertical Loads in Walls

The length of wall, laid up in running bond, which may be considered capable of working at the maximum allowable compressive stresses to resist vertical concentrated loads, shall not exceed the centre to centre distance between such loads, nor the width of bearing area plus four times the wall thickness. Concentrated vertical loads shall not be assumed distributed across continuous vertical mortar or control joints unless elements designed to distribute the concentrated vertical loads are employed.

​

4.4.8.4 Loads on Nonbearing Wall

Masonry walls used as interior partition or as exterior surfaces of building which do not carry vertical loads imposed by other elements of the building shall be designed to carry their own weight plus any superimposed finish and lateral forces. Bonding or anchorage of nonbearing walls shall be adequate to support the walls and to transfer lateral forces to the supporting structures.

​

4.4.8.5 Load Combinations

Load combination for design of masonry structures shall conform to the requirements of Sec 2.7.5.1.

​

4.4.9 Minimum Design Dimensions

​

4.4.9.1 Minimum Thickness of Load Bearing Walls

The nominal thickness of masonry bearing walls in building shall not be less than 250 mm.

​

4.4.9.2 Variation in Thickness

When a change in thickness due to minimum thickness requirements occurs between floor levels, the greater thickness shall be carried up to the higher floor level.

​

4.4.9.3 Decrease in Thickness

When walls of masonry of hollow units or masonry bonded hollow walls are decreased in thickness, a course or courses of solid masonry shall be constructed between the walls below and the thinner wall above, or special units or construction shall be used to transmit the loads from wythes to the walls below.

​

4.4.9.4 Parapet Wall

Parapet walls shall be at least 200 mm thick and height shall not exceed 4 times the thickness. The parapet wall shall not be thinner than the wall below.

​

4.5 DESIGN OF UNREINFORCED MASONRY

​

4.5.1 General

The requirements of this section are applicable to unreinforced masonry in addition to the requirements of Sec 4.4.

​

4.5.2 Design of Members Subjected to Axial Compression

The stresses due to compressive forces applied at the centroid of any load bearing wall, column and pilaster may be computed by Eq (4.5.1) below assuming uniform distribution over the effective area. $$f_a = \frac{P}{A_e} \tag{4.5.1}$$

​

4.5.3 Design of Members Subjected to Combined Bending and Axial Compression

a) Compressive stresses due to combined bending and axial load shall satisfy the requirements of Sec 4.3.5. b) Resultant tensile stress due to combined bending and axial load shall not exceed the allowable flexural tensile stress, $F_t$ as specified in Sec 4.3.

​

4.5.4 Design of Members Subjected to Flexure

Stresses due to flexure calculated by Eq (4.5.2) below shall not exceed the values given in Sec 4.3.5. $$f_b = \frac{Mc}{I} \tag{4.5.2}$$

​

4.5.5 Design of Members Subjected to Shear

Shear calculations in flexural members and shear walls shall be based on Eq (4.5.3) below. $$f_v = \frac{V}{A_e} \tag{4.5.3}$$

​

4.5.6 Design of Arches

Geometrical form and the cross-sectional dimensions of masonry arch shall be selected such that the line of thrust at any section of the arch is kept within the middle third of the section of the arch rib. The elastic theory of arches shall be permitted for the analysis of unreinforced masonry arches. All supports of arches shall be capable of developing the required horizontal thrust without suffering unacceptable displacements. Every arch must be designed to resist the stresses due to the following loads: a) Gravity Loads: i) Dead loads shall be placed in conformity with their actual distribution. ii) Live loads shall be positioned to cover entire span or part of the span as necessary to produce the maximum stresses at the crown, springing and all other sections of the arch rib. b) Loads due to temperature change. c) Shrinkage load due to setting and hardening. d) Shortening of arch rib under thrust caused by loads.

​

4.5.7 Footings and Corbels

The slope of footing and corbelling (measured from the horizontal to the face of the corbelled surface) shall not be less than 60 degrees. The maximum horizontal projection of corbelling from the plane of the wall shall be such that stress at any section does not exceed the allowable value.

​

4.6 DESIGN OF REINFORCED MASONRY

​

4.6.1 General

The requirements of this section are in addition to those specified in Sec 4.4 and are applicable to reinforced masonry. Plain bars larger than 6 mm in diameter shall not be used.

​

4.6.1.1 Assumptions

The following assumptions shall be applicable for this section. a) Masonry carries no tensile stress. b) Reinforcement is completely surrounded by and bonded to masonry material so that they work together as a homogeneous material within the range of working stresses.

​

4.6.2 Design of Members Subjected to Axial Compression

Stresses due to compressive forces applied at the centroid of load bearing wall, column and pilaster may be computed assuming uniform distribution over the effective area. Stress shall be calculated from Eq (4.6.1) below: $$f_a = \frac{P}{A_e} \tag{4.6.1}$$

​

4.6.3 Design of Members Subjected to Combined Bending and Axial Compression

Stress due to combined bending and axial loads shall satisfy the requirements of Sec 4.3.5. Columns and walls subjected to bending with or without axial loads shall meet all applicable requirements for flexural design. The design of walls with an $(h'/t)$ ratio larger than 30 shall be based on forces and moments determined from analysis of structure. Such analysis shall take into account influence of axial loads and variable moment of inertia on member stiffness and fixed end moments, effect of deflections on moments and forces, and the effects of duration of loads.

​

4.6.4 Design of Members Subjected to Shear Force

Shearing stresses in flexural members and shear walls shall be computed by $$f_v = \frac{V}{bjd} \tag{4.6.2}$$ When the computed shear stress exceeds the allowable value, web reinforcement shall be provided and designed to carry the total shear force. Both vertical and horizontal shear stresses shall be considered. The area required for shear reinforcement placed perpendicular to the longitudinal reinforcement shall be computed by Eq (4.6.3) below: $$A_v = \frac{sV}{F_s d} \tag{4.6.3}$$ Spacing of vertical shear reinforcement shall not exceed $d/2$, nor 600 mm. Inclined shear reinforcement shall have a maximum spacing of $0.375 d (1 + \cot \alpha)$, but not greater than 600 mm, where $\alpha$ is the acute angle between inclined bar and the horizontal.

​

4.6.5 Design of Members Subjected to Flexural Stress

​

4.6.5.1 Rectangular Elements

Rectangular flexural elements shall be designed in accordance with the following equations or other methods based on the simplified assumptions. a) Compressive stress in the masonry: $$f_b = \frac{M}{bd^2}\left(\frac{2}{jk}\right) \tag{4.6.4}$$ b) Tensile stress in the longitudinal reinforcement: $$f_s = \frac{M}{A_s jd} \tag{4.6.5}$$ c) Design coefficients: $$k = \left[(np)^2 + 2np\right]^{1/2} - np \tag{4.6.6}$$ or $$k = \frac{1}{1 + \dfrac{f_s}{n f_b}} \tag{4.6.7}$$ $$j = 1 - \frac{k}{3} \tag{4.6.8}$$

​

4.6.5.2 Nonrectangular Sections

Flexural elements of nonrectangular cross-section shall be designed in accordance with the assumptions given in Sec 4.4.2.1 and 4.6.1.1.

​

4.6.5.3 Lateral Support

The clear distance between lateral supports of a beam shall not exceed 32 times the least depth of compression area.

​

4.6.5.4 Effective Width

In computing flexural stresses in walls where reinforcement occurs, the effective width assumed for running bond masonry shall not exceed 6 times the nominal wall thickness or the centre to centre distance between reinforcement. Where stack bond is used, the effective width shall not exceed 3 times the nominal wall thickness or the centre to centre distance between reinforcement or the length of one unit, unless grouted solid using open-ended joints.

​

4.6.5.5 Bond

In flexural members in which tensile reinforcement is parallel to the compressive face, the bond stress shall be computed by the formula: $$u = \frac{V}{\Sigma_o jd} \tag{4.6.9}$$

​

4.6.6 Reinforcement Requirements and Details

​

4.6.6.1 Column Reinforcement

a) Vertical Reinforcement: The area of vertical reinforcement shall not be less than $0.005 A_e$ and not more than $0.04 A_e$. At least four 10 mm $\phi$ bars shall be provided. b) Lateral Ties: All longitudinal bars for columns shall be enclosed by lateral ties. Lateral support shall be provided to the longitudinal bars by the corner of a complete tie having an included angle of not more than 135 degrees or by a hook at the end of a tie. The corner bars shall have such support provided by a complete tie enclosing the longitudinal bars. Alternate longitudinal bars shall have such lateral support provided by ties and no bar shall be farther than 150 mm from such a laterally supported bar. Lateral ties and longitudinal bars shall be placed not less than 40 mm and not more than 125 mm, from the surface of the column. Lateral ties may be against the longitudinal bars or placed in the horizontal bed joint if the requirements of Sec 4.4.6 are met. Spacing of ties shall not be more than 16 times longitudinal bar diameter, 48 times tie bar diameter or the least dimension of the column but not more than 450 mm. Ties shall be at least 6 mm in diameter for 22 mm diameter or smaller longitudinal bars and 10 mm in diameter for larger longitudinal bars. Ties less than 10 mm in diameter may be used for longitudinal bars larger than 22 mm in diameter, provided the total cross-sectional area of such smaller ties crossing a longitudinal plane is equal to that of the larger ties at their required spacing. c) Anchor Bolt Ties: Additional ties shall be provided around anchor bolts which are set in the top of the column. Such ties shall engage at least four bolts or, alternatively at least four vertical column bars or a combination of bolts and bars totaling four in number. Such ties shall be located within the top 125 mm of the column and shall provide a total of 250 square millimeters or more in cross-sectional area. The upper most ties shall be within 50 mm of the top of the column.

​

4.6.6.2 Maximum Reinforcement Size

The maximum size of reinforcing bars shall be 35 mm. Maximum steel area in cell shall be 6 per cent of the cell area without splices and 12 per cent of cell area with splices.

​

4.6.6.3 Spacing of Longitudinal Reinforcement

The clear distance between parallel bars, except in columns, shall not be less than the nominal diameter of the bars or 25 mm, except that bars in a splice may be in contact. This clear distance requirement applies to the clear distance between a contact splice and adjacent splices or bars. The minimum clear distance between parallel bars in columns shall be two and one-half times the bar diameter. The clear distance between the surface of a bar and any surface of a masonry unit shall not be less than 6 mm for fine grout and 12 mm for coarse grout. Cross webs of hollow units may be used as support for horizontal reinforcement. All reinforcing bars, except joint reinforcing, shall be completely embedded in mortar or grout and have a minimum cover, including the masonry unit, as specified below: i) 20 mm when not exposed to weather ii) 40 mm when exposed to weather iii) 50 mm when exposed to soil

​

4.6.6.4 Anchorage of Flexural Reinforcement

a) The tension or compression in any bar at any section must be developed on each side of that section by the required development length. The development length of the bar may be achieved by a combination of an embedment length, anchorage or, for tension only, hooks. The required development length for deformed bars or deformed wires shall be calculated by: $$\ell_d = 0.29 d_b f_s \text{ for bars in tension} \tag{4.6.10}$$ $$\ell_d = 0.22 d_b f_s \text{ for bars in compression} \tag{4.6.11}$$ Development length for plain bars shall be 2.0 times the length calculated by Eq (4.6.10). b) Except at supports, or at the free end of cantilevers, every reinforcing bar shall be extended beyond the point at which it is no longer needed to resist tensile stress for a distance equal to 12 bar diameters or the depth of the flexural member, whichever is greater. No flexural bars shall be terminated in a tensile zone unless one of the following conditions is satisfied: i) The shear is not over one-half of that permitted, including allowance for shear reinforcement, if any. ii) Additional shear reinforcement in excess of that required is provided each way from the cutoff a distance equal to the depth of the beam. The shear reinforcement spacing shall not exceed $d/8r_b$, where $r_b$ is the ratio of the area of bars cutoff to the total area of bars at the section. iii) The continuing bars provide double the area required for flexure at that point or double the perimeter required for reinforcing bond. c) At least one third of the total reinforcement provided for negative moment at the support shall be extended beyond the extreme position of the point of inflection a distance sufficient to develop one half the allowable stress in the bar, one sixteenth of the clear span, or the depth $d$ of the member, whichever is greater. d) Tensile reinforcement of negative moment in any span of a continuous restrained or cantilever beam, or in any member of a rigid frame, shall be adequately anchored by reinforcing bond, hooks or mechanical anchors in or through the supporting member. e) At least one third of the required positive moment reinforcement in simple beams or at the freely supported end of continuous beams shall extend along the same face of the beam into the support at least 150 mm. At least one fourth of the required positive moment reinforcement at the continuous end of continuous beams shall extend along the same face of the beam into the support at least 150 mm. f) Compression reinforcement in flexural members shall be anchored by ties or stirrups not less than 6 mm in diameter, spaced not farther apart than 16 bar diameters or 48 tie diameters whichever is smaller. Such ties or stirrups shall be used throughout the distance where compression steel is required. g) In regions of moment where the design tensile stresses in the steel are greater than 80 per cent of the allowable steel tensile stress $(F_s)$, the lap length of splices shall be increased not less than 50 per cent of the minimum required length. Other equivalent means of stress transfer to accomplish the same 50 per cent increase may be used.

​

4.6.6.5 Anchorage of Shear Reinforcement

a) Single separate bars used as shear reinforcement shall be anchored at each end by one of the following methods: i) Hooking tightly around the longitudinal reinforcement through 180 degrees. ii) Embedment above or below the mid-depth of the beam on the compression side a distance sufficient to develop the stress in the bar for plane or deformed bars. iii) By a standard hook (see Sec 4.6.6.6) considered as developing 50 N/mm², plus embedment sufficient to develop the remainder of the stress to which the bars are subject. The effective embedded length shall not be assumed to exceed the distance between the mid-depth of the beam and the tangent of the hook. b) The ends of bars forming single U or multiple U stirrups shall be anchored by one of the methods specified above or shall be bent through an angle of at least 90 degrees tightly around a longitudinal reinforcing bar not less in diameter than the stirrup bar, and shall project beyond the bend at least 12 diameters of the stirrup. c) The loops or closed ends of single U or multiple U stirrups shall be anchored by bending around the longitudinal reinforcement through an angle of at least 90 degrees and project beyond the end of the bend at least 12 diameters of the stirrup.

​

4.6.6.6 Hooks

a) The term “standard hook” shall mean one of the following: i) A 180 degree turn plus an extension of at least 4 bar diameters but not less than 65 mm at the free end of the bar. ii) 90 degree turn plus an extension of at least 12 bar diameters at the free end of the bar. iii) For stirrup and tie anchorage only either a 90 degree or a 135 degree turn, plus an extension of at least 6 bar diameters but not less than 65 mm at the free end of the bar. b) The diameter of bend measured on the inside of the bar other than stirrups and ties, shall not be less than that set forth in Table 6.4.12. c) Inside diameter of bend for 12 mm diameter or smaller stirrups and ties shall not be less than 4 bar diameters. Inside diameter of bend for 16 mm diameter or larger stirrups and ties shall not be less than that given in Table 6.4.12. d) Hooks shall not be permitted in the tension portion of any beam, except at the ends of simple or cantilever beams or at the freely supported ends of continuous or restrained beams. Table 6.4.12 Minimum Diameter of Bend e) Hooks shall not be assumed to carry a load which would produce a tensile stress in the bar greater than 50 N/mm². f) Hooks shall not be considered effective in adding to the compressive resistance of bars. g) Any mechanical device capable of developing the strength of the bar without damage to the masonry may be used in lieu of a hook. Data must be presented to show the adequacy of such devices.

​

4.6.6.7 Splices

The amount of lap of lapped splices shall be sufficient to transfer the allowable stress of the reinforcement as in Sec 4.6.6.4. In no case shall the length of the lapped splice be less than 30 bar diameters for compression and 40 bar diameters for tension. Welded or mechanical connections shall develop 125 per cent of the specified yield strength of the bar in tension, except for connections of compression bars in columns that are not part of the seismic system and are not subject to flexure, where the compressive strength only need be developed. When adjacent splices in grouted masonry are separated by 75 mm or less, the lap length shall be increased by 30 per cent or the splice may be staggered at least 24 bar diameters with no increase in lap length.

​

4.7 STRENGTH DESIGN OF SLENDER WALLS AND SHEAR WALLS

​

4.7.1 Design of Slender Walls

In lieu of the procedure set forth in Sec 4.6, the procedures prescribed in this section, which consider the slenderness of walls by representing effects of axial forces and deflection in calculation of moments, may be used when the vertical load stress at the location of maximum moment computed by Eq (4.7.1) does not exceed $0.04 f_m'$. The value of $f_m'$ shall not exceed 40 N/mm². $$\frac{P_w + P_f}{A_g} \leq 0.04 f_m' \tag{4.7.1}$$ Slender masonry walls shall have a minimum nominal thickness of 150 mm.

​

4.7.1.1 Slender Wall Design Procedure

a) Maximum Reinforcement: The reinforcement ratio shall not exceed $0.5 \rho_b$, where $\rho_b$ is the balanced steel ratio. b) Moment and Deflection Calculation: All moments and deflections of slender walls shall be calculated based on simple support conditions at top and bottom. For other support and fixity conditions, moments and deflections shall be calculated using established principles of mechanics.

​

4.7.1.2 Strength Design

a) Loads: Factored loads shall be determined in accordance with Chapter 2, Loads. b) Required Moment: Required moment and axial force shall be determined at the mid-height of the wall and shall be used for design. The factored moment, $M_u$, at the mid-height of the wall shall be determined by Eq (4.7.2). $$M_u = \frac{w_u h^2}{8} + P_u \frac{e}{2} + \left(P_{uw} + P_{uf}\right) \Delta_u \tag{4.7.2}$$ where: $\Delta_u$ = horizontal deflection at mid-height under factored load; P-Delta effects shall be included in deflection calculation. $e$ = eccentricity of $P_u$ $P_u$ = axial load at mid-height of wall, including tributary wall weight. $\phantom{P_u} = P_{uw} + P_{uf}$ c) Design Strength: Design strength in flexure is the nominal moment strength, $M_n$, multiplied by the strength reduction factor, $\phi$ and shall equal or exceed the factored moment, $M_u$. $$M_u \leq \phi M_n \tag{4.7.3}$$ where: $M_n$ = nominal moment strength $\phantom{M_n} = A_{se} f_y (d - a/2)$ $A_{se}$ = effective area of steel $\phantom{A_{se}} = \dfrac{A_s f_y + P_u}{f_y}$, and $a$ = depth of stress block due to factored loads. $\phantom{a} = \dfrac{P_u + A_s f_y}{0.85 f_m' b}$ The strength reduction factor $\phi$ for flexure shall be 0.80. d) Design Assumptions: The following are the design assumptions for calculation of nominal strength. i) Nominal strength of singly reinforced masonry wall cross-sections subject to combined flexure and axial load shall be based on applicable conditions of equilibrium and compatibility of strains. ii) Strain in reinforcement and masonry walls shall be assumed directly proportional to the distance from the neutral axis. iii) Maximum usable strain at extreme masonry compression fibre shall be assumed equal to 0.003. iv) Stress in reinforcement below specified yield strength $f_y$ shall be taken as $E_s$ times steel strain. For strains greater than that corresponding to $f_y$, stress in reinforcement shall be considered independent of strain and equal to $f_y$. v) Tensile strength of masonry walls shall be neglected in flexural calculations of strength, except for deflection calculation. vi) Relationship between masonry compressive stress and masonry strain may be assumed to be rectangular as defined by the following:

1. Masonry stress of $0.85 f_m'$ shall be assumed uniformly distributed over an equivalent compression zone bounded by edges of the cross-section and a straight line located parallel to the neutral axis at a distance $a = 0.85c$ from the fibre of maximum compressive strain.
2. Distance $c$ from fibre of maximum strain to the neutral axis shall be measured in a direction perpendicular to that axis.

​

4.7.1.3 Deflection Calculation

The mid-height deflection, $\Delta_s$, under service lateral and vertical loads (without load factors) shall be limited to: $$\Delta_s = 0.007h \tag{4.7.4}$$ The mid-height deflection shall be computed by: $$\Delta_s = \frac{5 M_s h^2}{48 E_m I_g} \text{ when } M_{ser} \leq M_{cr} \tag{4.7.5}$$ $$\Delta_s = \frac{5 M_{cr} h^2}{48 E_m I_g} + 5\frac{(M_{ser} - M_{cr})h^2}{48 E_m I_{cr}} \text{ when } M_{cr} < M_{ser} < M_n \tag{4.7.6}$$ The cracking moment strength of the wall $M_{cr}$ shall be determined by: $$M_{cr} = S f_r \tag{4.7.7}$$ The modulus of rupture, $f_r$, shall be determined form Table 6.4.13. Table 6.4.13 Values of the Modulus of Rupture, $f_r$

​

4.7.2 Design of Shear Walls

Based on ultimate strength design, the procedures described below may be used as an alternative to the procedure specified in Sec 4.6 for the design of reinforced hollow unit masonry shear walls. Provisions for quality control during construction of the shear wall are specified in Sec 4.3.4

​

4.7.2.1 Required Strength

The required strength to resist different combinations of loads shall be determined in accordance with Sec 2.7.5.1.

​

4.7.2.2 Design Strength

Shear walls shall be proportioned such that the design strength exceeds the required strength. Design strength in terms of axial force, shear force and moment provided by the shear wall shall be computed as the nominal strength multiplied by the strength reduction factor $\phi$. Strength reduction factor $\phi$ shall be as follows: a) $\phi = 0.65$ for axial load and axial load with flexure For members with $f_y$ less than 410 N/mm² and with symmetrical reinforcement, $\phi$ may be increased linearly to 0.85 as $\phi P_n$ decreases from $0.10 f_m' A_e$ or $0.25 P_b$ to zero. For solid grouted walls $P_b$ may be calculated by $$P_b = 0.85 f_m' b a_b \tag{4.7.8}$$ where $$a_b = 0.85\left[e_{mu}/(e_{mu} + f_y/E_s)\right]d$$ b) $\phi = 0.60$ for shear The shear strength reduction factor may be 0.80 for any shear wall when its nominal shear strength exceeds the shear corresponding to development of its nominal flexural strength for the factored load combination.

​

4.7.2.3 Design Assumptions for Nominal Strength

a) Nominal strength of shear wall cross-sections shall be based on assumptions specified in Sec 4.7.1.2(d). b) The maximum usable strain $e_{mu}$, at the extreme masonry compression fibre shall not exceed 0.003. c) $f_m'$ shall not be less than 7 N/mm² or greater than 20 N/mm².

​

4.7.2.4 Axial Strength

The nominal axial strength of shear walls supporting axial loads only shall be calculated by Eq (4.7.9) $$P_o = 0.85 f_m' (A_e - A_s) + f_y A_s \tag{4.7.9}$$ The shear wall shall be designed for the axial strength $P_u$, such that $$P_u \leq \phi (0.80) P_o \tag{4.7.10}$$

​

4.7.2.5 Shear Strength

a) The nominal shear strength shall be determined by the provisions as specified in (b) or (c) below. The maximum nominal shear strength values are given in Table 6.4.14. Table 6.4.14 Maximum Nominal Shear Strength Values * $M$ is the maximum bending moment that occurs simultaneously with the shear load $V$ at the section under consideration. Interpolation may be by straight line for $M/Vd$ values between 0.25 and 1.00. b) The nominal shear strength of shear walls except for shear walls specified in (c) below shall be determined by Eq (4.7.11). $$V_n = V_m + V_s \tag{4.7.11}$$ where: $$V_m = 0.083 C_d A_{mv} \sqrt{f_m'} \tag{4.7.12}$$ The value of $C_d$ in Eq (4.7.12) is given as: $$C_d = 2.4 \text{ for } \frac{M}{Vd} \leq 0.25$$ $$= 1.2 \text{ for } \frac{M}{Vd} \geq 1.0$$ and $$V_s = A_{mv} \rho_n f_y \tag{4.7.13}$$ c) For a shear wall whose nominal shear strength exceeds the shear corresponding to development of its nominal flexural strength, two shear regions exist. i) For all cross-sections within the region defined by the base of the shear wall and a plane at a distance $L_w$ above the base of the shear wall, the nominal shear strength shall be determined by Eq (4.7.14) $$V_n = A_{mv} \rho_n f_y \tag{4.7.14}$$ The required shear strength for this region shall be calculated at a distance $L_w/2$ above the base of the shear wall but not to exceed one-half storey height. ii) For the other region, the nominal shear strength of the shear wall shall be determined by Eq (4.7.11).

​

4.7.2.6 Reinforcement

Reinforcement shall be in accordance with the following: i) Minimum reinforcement shall be provided in accordance with Sec 4.8.5.1 for all seismic areas using this method of analysis. ii) When the shear wall failure mode is in flexure, the nominal flexural strength of the shear wall shall be at least 1.8 times the cracking moment strength of a fully grouted wall or 3.0 times the cracking moment strength of a partially grouted wall as obtained from Eq (4.7.7). iii) All continuous reinforcement shall be anchored or spliced in accordance with Sec 4.6.6.4 with $f_s = 0.5 f_y$ iv) Vertical reinforcement shall not be less than 50 per cent of the horizontal reinforcement. v) Spacing of horizontal reinforcement within the region defined in Sec 4.7.2.5(c) shall not exceed three times the nominal wall thickness or 600 mm, whichever is smaller.

​

4.7.2.7 Boundary Member

Boundary members shall be as follows: a) The need for boundary members at boundaries of shear wall shall be determined using the provisions set forth in (b) or (c) below. b) Boundary members shall be provided when the failure mode is flexure and the maximum extreme fibre stress exceeds $0.2 f_m'$. The boundary members may be discontinued where the calculated compressive stresses are less than $0.15 f_m'$. Stresses may be calculated for the factored forces using a linearly elastic model and gross section properties. c) When the failure mode is flexure, boundary member shall be provided to confine all vertical reinforcement whose corresponding masonry compressive stress exceeds $0.4 f_m'$. d) The minimum length of the boundary member shall be 3 times the thickness of the wall. e) Boundary members shall be confined with minimum of 10 mm diameter bars at a maximum of 200 mm spacing or equivalent within the grouted core and within the region defined by the base of the shear wall and a plane at a distance $L_w$ above the base of the shear wall.

​

4.8 EARTHQUAKE RESISTANT DESIGN

​

4.8.1 General

All masonry structures constructed in the Seismic Zones 2 and 3 shown in Fig 6.2.10 shall be designed in accordance with the provisions of this Section.

​

4.8.2 Loads

Seismic forces on masonry structures shall be determined in accordance with the provisions of Sec 2.5 of this Part.

​

4.8.3 Materials

a) Well burnt clay bricks and concrete hollow blocks having a crushing strength not less than 12 N/mm² shall be used. b) Mortar not leaner than M₃ shall be used for masonry constructions.

​

4.8.4 Provisions for Seismic Zone 2

​

4.8.4.1 Wall Reinforcement

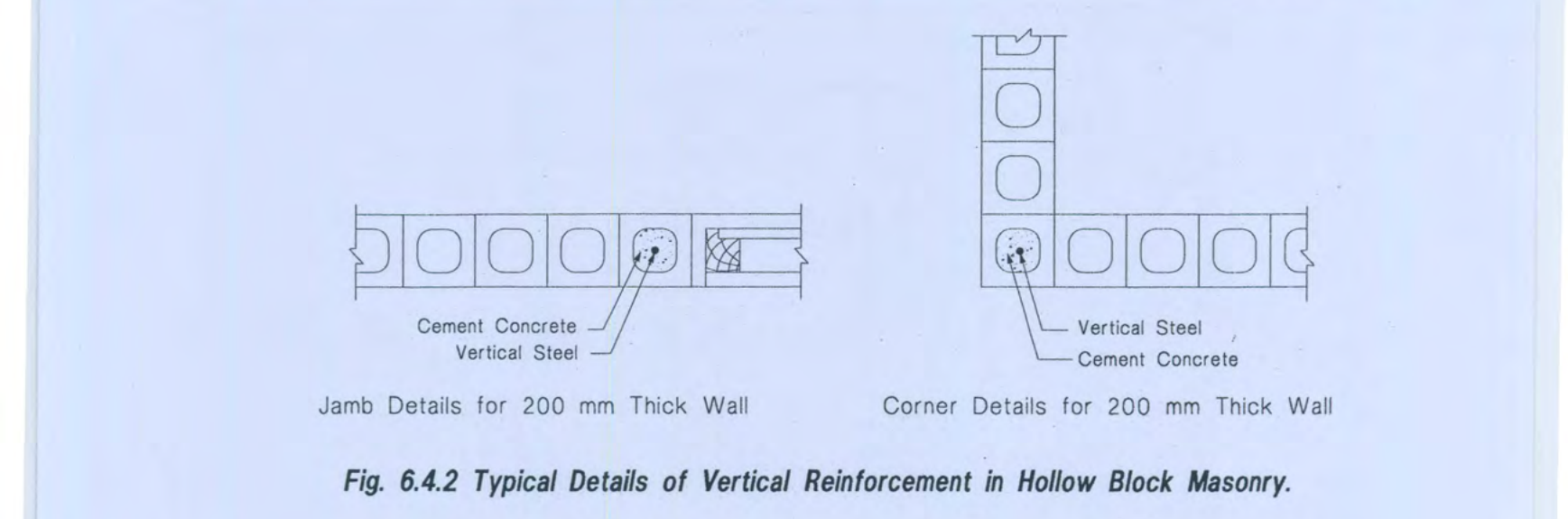

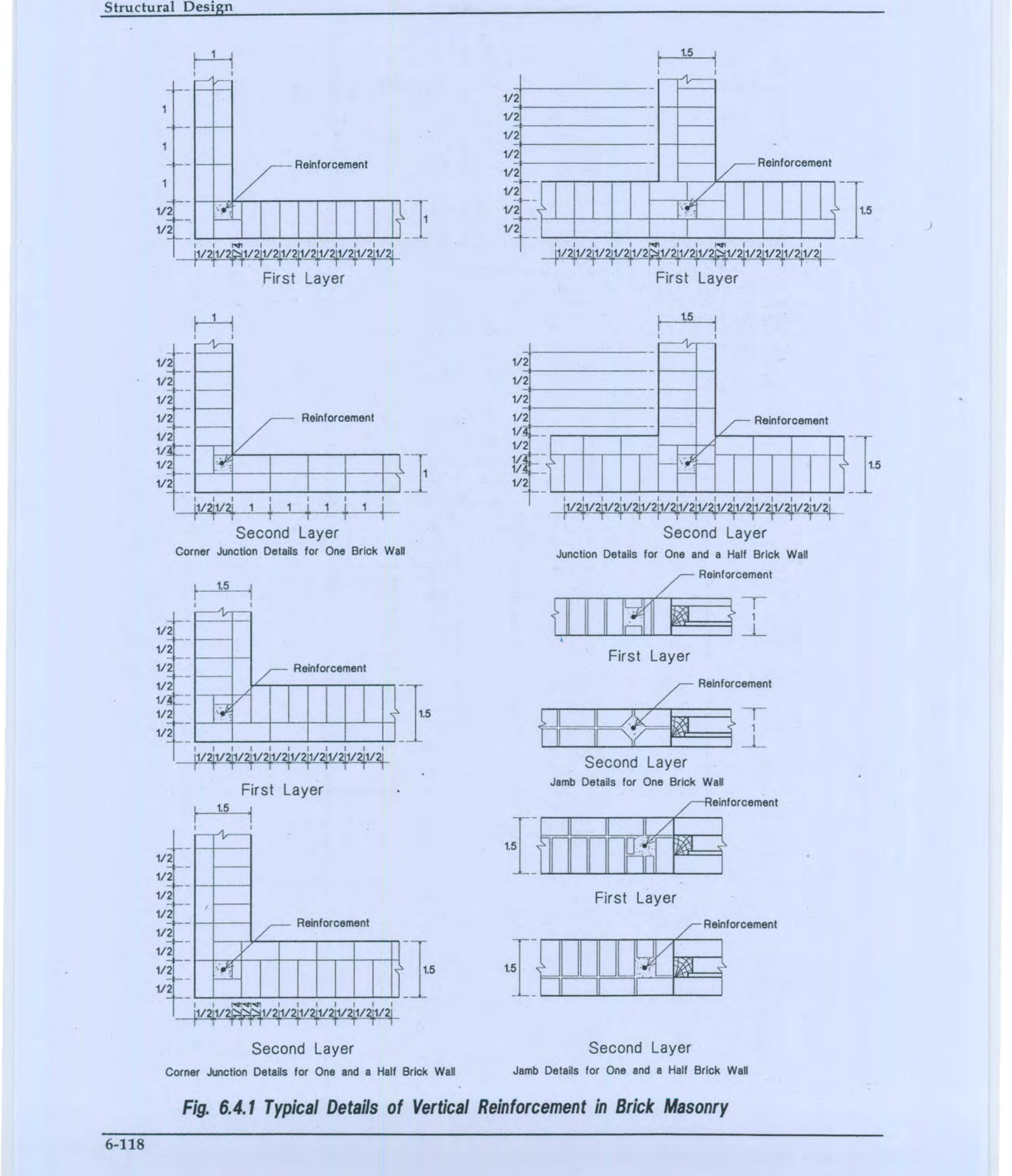

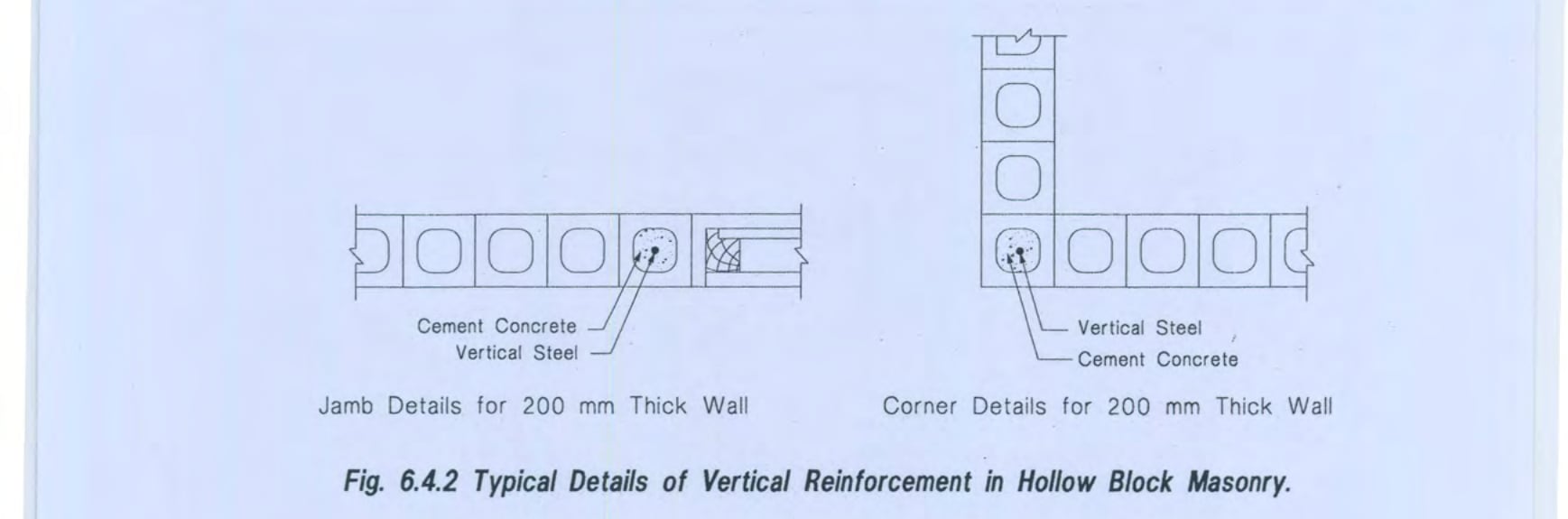

Vertical reinforcement of at least 12 mm $\phi$ shall be provided continuously from support to support at each corner, at each side of each opening, at the ends of walls and at a maximum spacing of 1.2 m horizontally throughout the wall. Horizontal reinforcement not less than 12 mm $\phi$ shall be provided: a) at the bottom and top of wall openings and shall extend at least 40 bar diameters, with a minimum of 600 mm, past the opening, b) continuously at structurally connected roof and floor levels and at the top of walls, c) at the bottom of the wall or in the top of the foundations when dowelled to the wall, d) at maximum spacing of 3.0 m unless uniformly distributed joint reinforcement is provided. Reinforcement at the top and bottom of openings when continuous in the wall may be used in determining the maximum spacing specified in item (a) above.

​

4.8.4.2 Stack Bond

Where stack bond is used, the minimum horizontal reinforcement ratio shall be $0.0007bt$. This ratio shall be satisfied by uniformly distributed joint reinforcement or by horizontal reinforcement spaced not more than 1.2 m and fully embedded in grout or mortar.

​

4.8.4.3 Columns

Columns shall be reinforced as specified in Sec 4.6.6.1.

​

4.8.5 Provisions for Seismic Zone 3

All masonry structures built in Seismic Zone 3 shall be designed and constructed in accordance with requirements for Seismic Zone 2 and with the following additional requirements and limitations. Reinforced hollow unit stack bond construction which is part of the seismic resisting system shall use open-end units so that all head joints are made solid, shall use bond beam units to facilitate the flow of grout and shall be grouted solid.

​

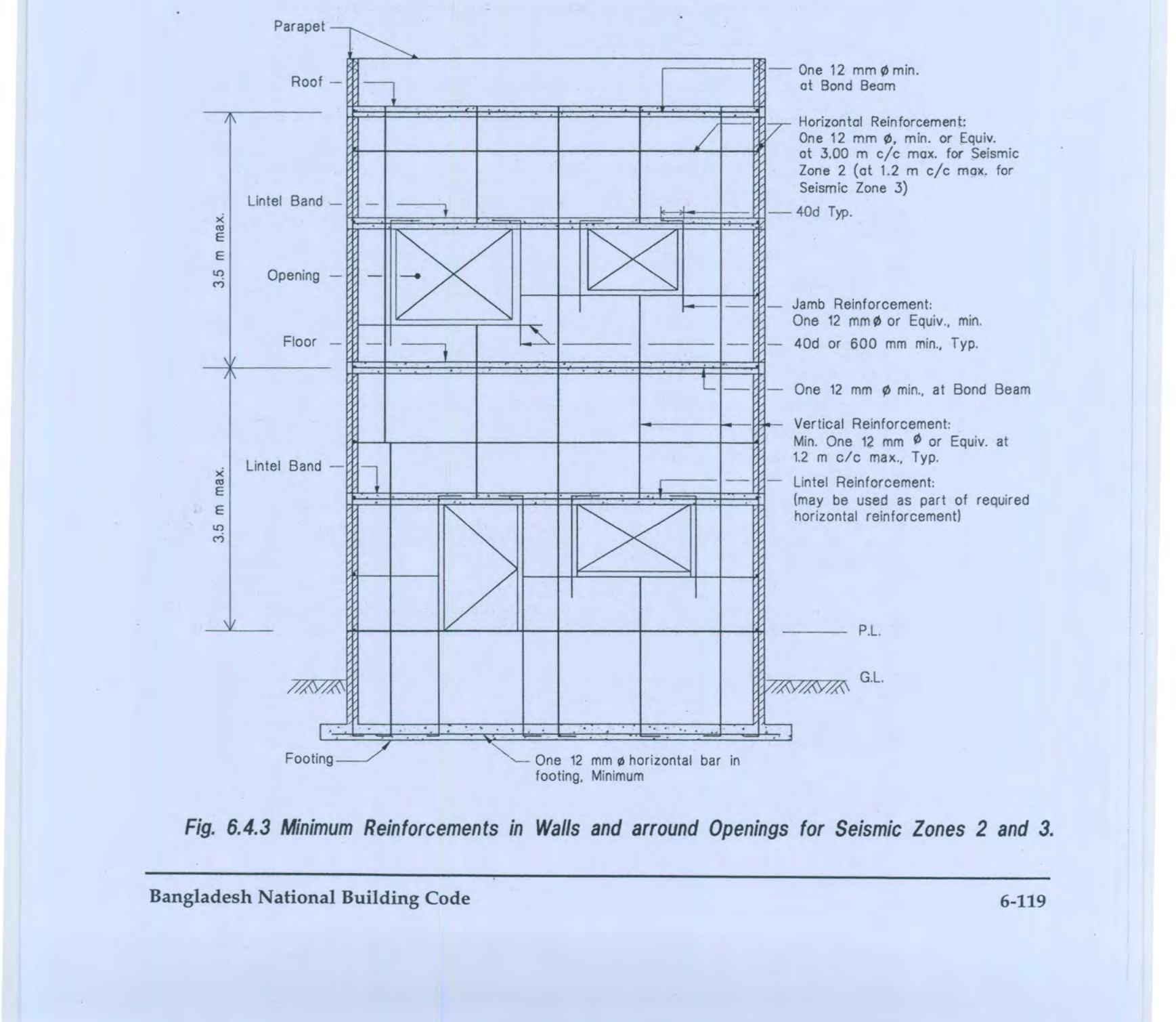

4.8.5.1 Wall Reinforcement

Reinforced masonry walls shall be reinforced with both vertical and horizontal reinforcement. The sum of the areas of horizontal and vertical reinforcement shall be at least 0.002 times the gross cross-sectional area of the wall and the area of reinforcement in either direction shall not be less than 0.0007 times the gross cross-sectional area of the wall. The spacing of reinforcement shall not exceed 1.20 m. The diameter of reinforcing bar shall not be less than 10 mm except that joint reinforcement may be considered as part of all of the requirements for minimum reinforcement. Reinforcement shall be continuous around wall corners and through intersections. Only reinforcement which is continuous in the wall or element shall be considered in computing the minimum area of reinforcement. Reinforcement with splices conforming to Sec 4.6.6.7 shall be considered as continuous reinforcement.

​

4.8.5.2 Column Reinforcement

The spacing of column ties shall be not more than 225 mm for the full height of columns stressed by tensile or compressive axial overturning forces due to the seismic loads, and 225 mm for the tops and bottoms of all other columns for a distance of one sixth of the clear column height, but not less than 450 mm or maximum column dimension. Tie spacing for the remaining column height shall be not more than 16 bar diameters, 48 tie diameters or the least column dimension, but not more than 450 mm.

​

4.8.5.3 Stack Bond

Where stack bond is used, the minimum horizontal reinforcement ratio shall be $0.0015bt$. If open-end units are used and grouted solid, the minimum horizontal reinforcement ratio shall be $0.0007bt$.

​

4.8.5.4 Minimum Dimension

i) Bearing Walls: The nominal thickness of reinforced masonry bearing walls shall be not less than 150 mm except that nominal 100 mm thick load bearing reinforced hollow clay unit masonry walls may be used, provided net area unit strength exceeds 55 N/mm², units are laid in running bond, bar sizes do not exceed 12 mm with no more than two bars or one splice in a cell, and joints are flush cut, concave or a protruding V section. ii) Columns: The least nominal dimension of a reinforced masonry column shall be 375 mm except that if the allowable stresses are reduced to 50 per cent of the values given in Sec 4.3, the minimum nominal dimension shall be 250 mm.

​

4.8.5.5 Shear Wall

i) When calculating shear or diagonal tension stresses, shear walls which resist seismic forces shall be designed to resist 1.5 times the forces specified in Chapter 2, Loads. ii) The portion of the reinforcement required to resist shear shall be uniformly distributed and shall be joint reinforcing, deformed bars, or a combination thereof. The maximum spacing of reinforcement in each direction shall be not less than the smaller of one-half the length or height of the element or more than 1.20 m. Joint reinforcement used in exterior walls and considered in the determination of the shear strength of the member shall conform to the requirement “Joint Reinforcement for Masonry” (UBC Standard No. 24-15) or “Standard Specification for Steel Wire, Plain, for Concrete Reinforcement”, (ASTM, A82). Reinforcement required to resist in-plane shear shall be terminated with a standard hook or with an extension of proper embedment length beyond the reinforcing at the end of the wall section. The hook or extension may be turned up, down or horizontally. Provisions shall be made not to obstruct grout placement. Wall reinforcement terminating in columns or beams shall be fully anchored into these elements. iii) Multi-wythe grouted masonry shear walls shall be designed with consideration of the adhesion bond strength between the grout and masonry units. When bond strengths are not known from previous tests, the bond strength shall be determined by test.

​

4.8.5.6 Hook

The standard hook for tie anchorage shall have a minimum turn of 135 degrees plus an extension of at least 6 bar diameters, but not less than 100 mm at the free end of the bar. Where the ties are placed in the horizontal bed joints, the hook shall consist of a 90 degree bend having a radius of not less than 4 tie diameters plus an extension of 32 tie diameters.

​

4.8.5.7 Mortar Joints Between Masonry and Concrete

Concrete abutting structural masonry such as at starter courses or at wall intersections not designed as true separation joints shall be roughened to a full amplitude of 1.5 mm and shall be bonded to the masonry as per the requirements of this section as if it were masonry.

​

4.8.6 Additional Requirements

​

4.8.6.1 Opening in Bearing Walls

a) Tops of all openings in a storey shall preferably be at the same level so that a continuous band could be provided over them, including the lintels throughout the building. b) The total width of the openings shall not be more than half of the length of the walls between the adjacent cross walls, except as provided in (f) below. c) The opening shall preferably be located away from the corner by a clear distance equal to at least one-eighth of the height of the opening for Seismic Zone 2 and one-fourth of the height for Seismic Zone 3. d) The horizontal distance between two openings shall not be less than one-fourth of the height of the shorter opening for Seismic Zone 2 and one-half of the height for Seismic Zone 3. e) The vertical distance between openings one above the other shall be not less than 600 mm. f) Where openings do not comply with the requirements of (b) and (c) above, they shall be strengthened in accordance with Sec 4.8.6.5. g) If a window or ventilator is to be projected out, the projection shall be in reinforced masonry or concrete and well anchored. h) If an opening is tall say, for the full height of wall, dividing the wall into two portions, these portions shall be reinforced with horizontal reinforcement of 6 mm diameter bars at not more than 600 mm intervals, one on inner and one on outer face, properly tied to vertical steel at jambs and corners or junctions of walls where used. j) The use of arches to span over the openings is a source of weakness and shall be avoided unless steel ties are provided.

​

4.8.6.2 Strengthening Arrangements

All masonry buildings shall be strengthened by the methods specified in Table 6.4.15. Table 6.4.15 Strengthening of Masonry Buildings for Earthquake * At tie level all the trusses and the gable end shall be provided with diagonal bracing in plan so as to transmit the lateral shear due to earthquake force to the gable walls acting as shear walls at the ends.

​

4.8.6.3 Bands

Roof band need not be provided underneath reinforced concrete or brickwork slabs resting on bearing walls, provided the slabs are continuous over parts between crumple sections, if any, and cover the width of end walls fully. The band shall be made of reinforced concrete with $f_c'$ not less than 20 N/mm² or reinforced brickwork in cement mortar not leaner than 1:4. The bands shall be to the full width of the wall and not less than 75 mm in depth and shall be reinforced as indicated in Table 6.4.16. In case of reinforced brickwork, the thickness of joints containing steel bars shall be increased so as to have a minimum mortar cover of 6 mm around the bar. In bands of reinforced brickwork, the area of steel provided shall be equal to that specified above for reinforced concrete bands. Table 6.4.16 Band Reinforcement

​

4.8.6.4 Strengthening of Corner and Junctions

Vertical steel at corners and junctions of walls which are up to one and a half bricks thick shall be provided either with mild steel or high strength deformed bars as specified in Table 6.4.17. For thicker walls, reinforcement shall be increased proportionately. The reinforcement shall be properly embedded in the plinth masonry of foundations and roof slab or roof band so as to develop its tensile strength in bond and passing through the lintel bands in all storeys. Bars in different storeys may be welded or suitably lapped. a) Typical details of vertical steel in brickwork and hollow block at corners, T-junctions and jambs of opening are shown in Fig 6.4.1 and Fig 6.4.2. Fig 6.4.1 Typical Details of Vertical Reinforcement in Brick Masonry Fig 6.4.2 Typical Details of Vertical Reinforcement in Hollow Block Masonry b) Details of vertical reinforcement given in Table 6.4.17 are applicable to brick masonry and hollow block masonry. Table 6.4.17 Vertical Reinforcement for Brick and Hollow Block Masonry

​

4.8.6.5 Strengthening of Jambs of Openings

Openings in bearing walls shall be strengthened, where necessary, by providing reinforced concrete members or reinforcing the brickwork around them as shown in Fig 6.4.3. Fig 6.4.3 Minimum Reinforcements in Walls and around Openings for Seismic Zones 2 and 3

​

4.8.6.6 Walls Adjoining Structural Framing

Where walls are dependent on the structural frame for lateral support they shall be anchored to the structural members with metal ties or keyed to the structural members. Horizontal ties shall consist of 6 mm diameter U-bars spaced at a maximum of 450 mm on centre and embedded at least 250 mm into the masonry and properly tied to the vertical steel of the same member.

​

4.9 PROVISIONS FOR HIGH WIND REGIONS

​

4.9.1 General

The provisions of this section shall apply to masonry structures located at regions where the basic wind speed is greater than 200 km/h.

​

4.9.2 Materials

Materials for masonry structures shall generally comply with the provisions of Part 5; however, there are some special requirements for masonry construction in high wind regions, which are given below: a) Burnt clay bricks shall have a compressive strength not less that 15 N/mm², b) Grout shall have a minimum compressive strength of 12.5 N/mm², c) Mortar for exterior walls and interior shear walls shall be type M₁ or M₂, d) Unburnt clay masonry units shall not be used.

​

4.9.3 Construction Requirements

Masonry construction shall comply with the provisions of Sec 4.10.

​

4.9.4 Foundation

Footings shall have a thickness of not less than 375 mm and shall be extended 450 mm below the undisturbed ground surface. Foundation stem wall shall have the same width and reinforcement as the wall it supports.

​

4.9.5 Drainage

Walls retaining more than 1 m of earth and enclosing interior spaces or floors below grade shall have minimum 100 mm diameter footing drain. A slope of 1:50 away from the building shall be provided around the building.

​

4.9.6 Wall Construction

​

4.9.6.1

Minimum thickness of different types of wall shall be as given in Table 6.4.18. Table 6.4.18 Minimum thickness of Walls in High Wind Region

​

4.9.6.2

All walls shall be laterally supported at the top and bottom. The maximum unsupported height of bearing walls or other masonry walls shall be 3.5 m. Gable end walls may be 4.5 m high at their peak.

​

4.9.6.3

The span of lintels over openings shall not exceed 3.5 m. All lintels shall be reinforced and the reinforcement bars shall extend not less than 600 mm beyond the edge of opening and into lintel supports.

​

4.9.6.4

Walls shall be adequately reinforced.

​

4.9.6.5

Anchors between walls and floors or roofs shall be embedded in grouted cells or cavities and shall conform to Sec 4.9.7 below.

​

4.9.7 Floor and Roof Systems

Floors and roofs of all masonry structures shall be adequately anchored with the wall it supports to resist lateral and uplift forces due to wind specified in Sec 2.4 of this Part.

​

4.9.8 Lateral Force Resistance

​

4.9.8.1

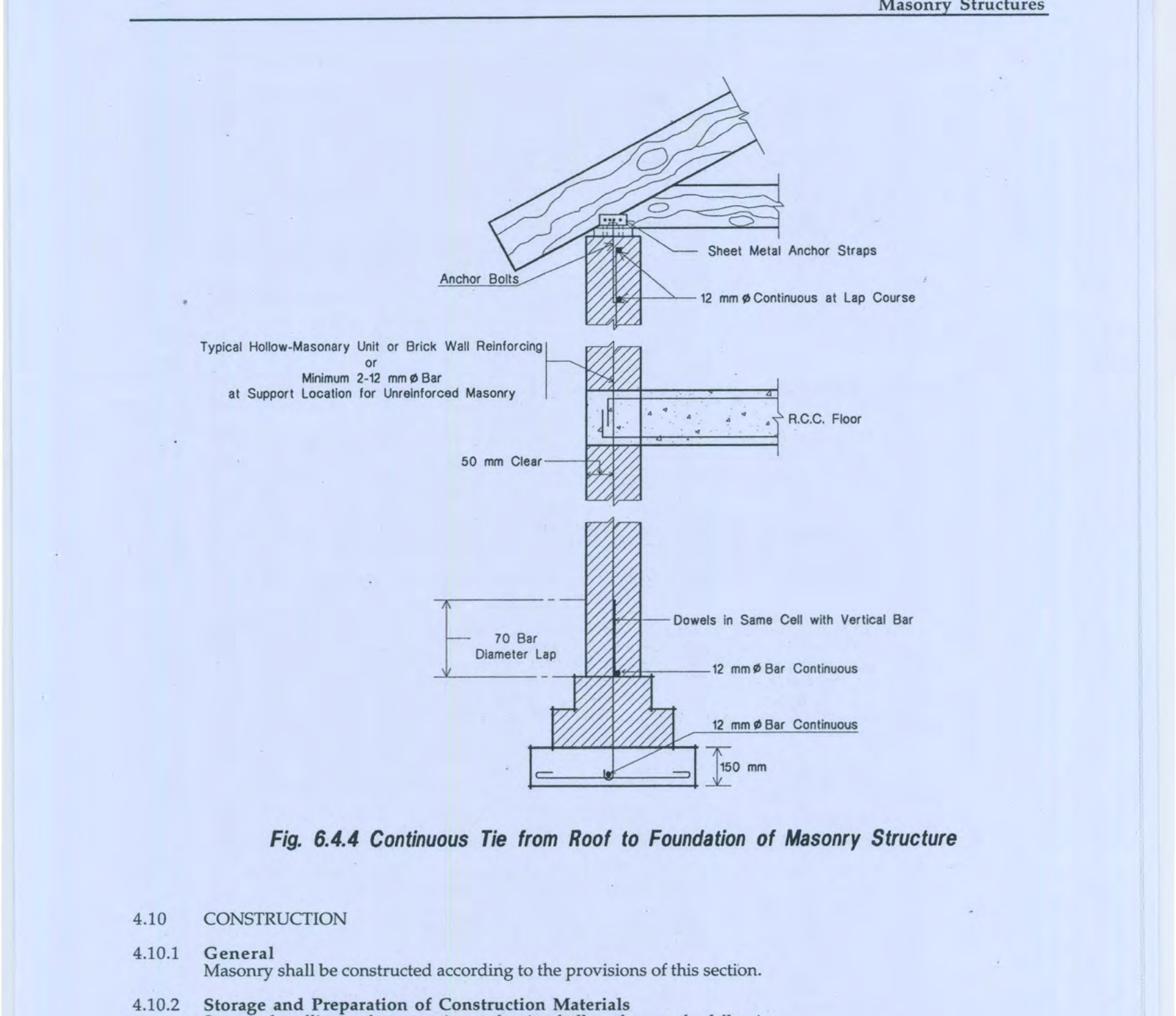

Strapping, approved framing anchors and mechanical fasteners, bond beams and vertical reinforcement shall be installed to provide a continuous tie from the roof to foundation system as shown in Fig 6.4.4. In addition, roof and floor systems, masonry shear walls, or masonry or wood cross walls shall be provided for lateral stability.

​

4.9.8.2

Floor and roof diaphragms shall be properly connected to masonry walls. Gable and sloped roof members not supported at the ridge shall be tied by the ceiling joist or equivalent lateral ties located as close to where the roof members bear on the wall as practically possible and not at more than 1.2 m on centres. Collar ties shall not be used for these lateral ties.

​

4.9.8.3

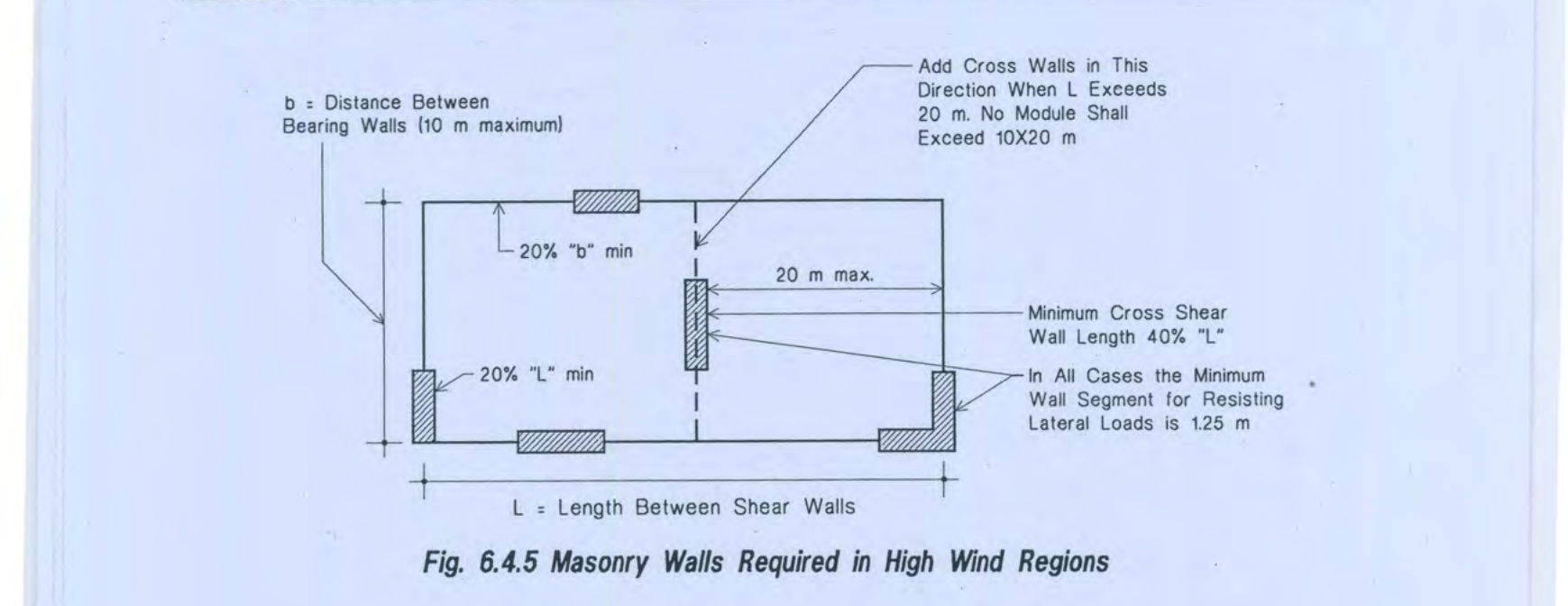

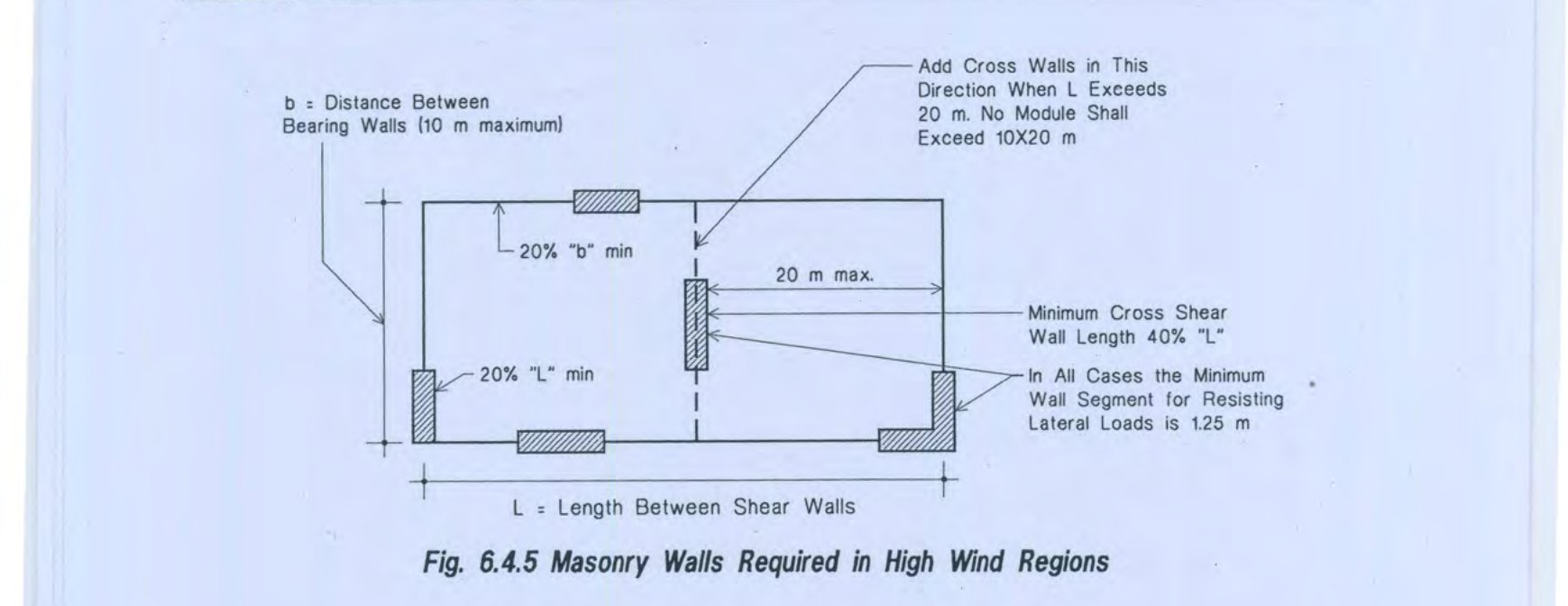

Masonry walls shall be provided around all sides of floor and roof systems in accordance with Fig 6.4.5. The cumulative length of exterior masonry walls along each side of the floor or roof systems shall be at least 20 per cent of the parallel dimension. Required elements shall be without openings and shall not be less that 1.25 m in width. Interior cross walls at right angles to bearing walls shall be provided when the length of the building perpendicular to the span of the floor of roof framing exceeds twice the distance between shear walls or 10 m, whichever is greater.

​

4.9.8.4

When required interior cross wall shall be at least 1.8 m long and reinforced with 2 mm wire joint reinforcement spaced not more than 400 mm on centre. Fig 6.4.4 Continuous Tie from Roof to Foundation of Masonry Structure

​

4.10 CONSTRUCTION

​

4.10.1 General

Masonry shall be constructed according to the provisions of this section.

​

4.10.2 Storage and Preparation of Construction Materials

Storage, handling and preparation at the site shall conform to the following: a) Masonry materials shall be stored in such a way that at the time of use the materials are clean and structurally suitable for the intended use. b) All metal reinforcement shall be free from loose rust and other coatings that would inhibit reinforcing bond. c) Burnt clay units shall have a rate of absorption per minute not exceeding one litre per square metre at the time of laying. In the absorption test the surface of the unit shall be held 3 mm below the surface of the water. d) Burnt clay units shall be thoroughly wetted before placing. Concrete masonry units shall not be wetted unless otherwise approved. Fig 6.4.5 Masonry Walls Required in High Wind Regions e) Materials shall be stored in such a manner that deterioration or intrusion of foreign materials is prevented and at the time of mixing the material conforms to the applicable requirements. f) The method of measuring materials for mortar and grout shall be such that proportions of the materials can be easily controlled. g) Mortar or grout mixed at the job site shall be mixed for a period of time not less than 3 minutes or more than 10 minutes in a mechanical mixer with the amount of water required to provide the desired workability. Hand mixing of small amounts of mortar is permitted. Mortar may be retempered. Mortar or grout which has hardened or stiffened due to hydration of the cement shall not be used, but under no case shall mortar be used two and one-half hours, nor grout used one and one-half hours, after the initial mixing water has been added to the dry ingredients at the job site.

​

4.10.3 Placing Masonry Units

a) The mortar shall be sufficiently plastic and units shall be placed with sufficient pressure to extrude mortar from the joint and produce a tight joint. Deep furrowing which produces voids shall not be used. The initial bed joint thickness shall not be less than 5 mm or more than 25 mm; subsequent bed joints shall be not less than 5 mm or more than 15 mm in thickness. b) All surfaces in contact with mortar or grout shall be clean and free of deleterious materials. c) Solid masonry units shall have full head and bed joints. d) All head and bed joints shall be filled solidly with mortar for a distance from the face of the unit not less than the thickness of the shell. Head joints of open-end units with beveled ends need not be mortared. The beveled ends shall form a grout key which permits grout within 16 mm of the face of the unit. The units shall be tightly butted to prevent leakage of grout.

​

4.10.4 Verticality and Alignment

All masonry shall be built true and plumb within the tolerances prescribed below. Care shall be taken to keep the perpends properly aligned. a) Deviation from vertical within a storey shall not exceed 6 mm per 3m height. b) Deviation in verticality in total height of any wall of a building more than one storey in height shall not exceed 12 mm. c) Deviation from position shown on plan of any brickwork shall not exceed 12 mm. d) Relative displacement between load bearing walls in adjacent storeys intended to be in vertical alignment shall not exceed 6 mm. e) Deviation of bed joint from horizontal in a length of 12 m shall not exceed 6 mm subject to a maximum deviation of 12 mm. f) Deviation from the specified thickness of bed joints, cross joints and perpends shall not exceed one-fifth of the specified thickness.

​

4.10.5 Reinforcement Placing

Reinforcing details shall conform to the requirements of Sec 4.6.6. Metal reinforcement shall be located in accordance with the plans and specifications. Reinforcement shall be secured against displacement prior to grouting by wire positioners or other suitable devices at intervals not exceeding 20 bar diameters. Tolerances for the placement of steel in walls and flexural elements shall be $\pm 12$ mm for $d \leq 200$ mm, $\pm 25$ mm for $200 \text{ mm} \leq d \leq 600$ mm and $\pm 30$ mm for $d > 600$ mm. Tolerance for longitudinal location of reinforcement shall be $\pm 50$ mm.

​

4.10.6 Grouted Masonry

Grouted masonry shall be constructed in such a manner that all elements act together as a structural element. Space to be filled with grout shall be clean and shall not contain any foreign materials. Grout materials and water content shall be controlled to provide adequate workability and shall be mixed thoroughly. The grouting of any section of wall shall be completed in one day with no interruptions greater than one hour. Size and height limitations of the grout space or cell shall not be less than those shown in Table 6.4.19. Higher grout pours or smaller cavity widths or cell size than shown in Table 6.4.19 may be used when approved, if it can be demonstrated that grout spaces are properly filled. Cleanouts are required for all grout pours over 1.5 m in height. When required, cleanouts shall be provided in the bottom course at every vertical bar but shall not be spaced more than 800 mm on centre for solidly grouted masonry. When cleanouts are required, they shall be sealed after inspection and before grouting. When cleanouts are not provided, special provisions must be made to keep the bottom and sides of the grout spaces, as well as the minimum total clear area as required by Table 6.4.19, clean and clear prior to grouting. Table 6.4.19 Grouting Limitations

​

4.10.7 Chases, Recesses and Holes

a) Chases, recesses and holes may be permitted in masonry provided either they are considered in the structural design or they are not cut into walls made of hollow or perforated units, or vertical chases are planned instead of horizontal chases. b) Depth of vertical and horizontal chases in load bearing walls shall not exceed one-third and one-sixth of the wall thickness respectively. c) Vertical chases shall not be closer than 2 m in any stretch of wall and shall not be located within 350 mm of an opening or within 230 mm of a cross wall that serves as stiffening wall for stability. Width of a vertical chase shall not exceed the thickness of wall in which it occurs. d) Horizontal chases shall be located in the upper or lower middle third height of wall at a distance not less than 600 mm from lateral support. No horizontal chase shall exceed one metre in length and there shall not be more than 2 chases in any one wall. Horizontal chases shall have minimum mutual separation distance of 500 mm. Sum of lengths of all chases and recesses in any horizontal plane shall not exceed one-fourth the length of the wall. e) Lintel shall not be used to support masonry directly above a recess or a hole wider than 300 mm. No lintel however, is necessary in case of a circular recess or hole exceeding 300 mm in diameter provided upper half of the recess or hole is built as a semi-circular arch of adequate thickness and there is adequate length of masonry on the sides of openings to resist the horizontal thrust. f) Recesses and holes in masonry shall be kept at the time of construction so as to avoid subsequent cutting. If cutting is necessary, it shall be done using sharp tools without causing heavy impact and damage to the surrounding areas. g) No chase, recess or hole shall be provided in half-brick load bearing wall, excepting the minimum number of holes needed for scaffolding.
